4.2.13 Integrating The Migrating-In And Migrating-Out Modules Into Population Model

The Powersim™ Studio model resulting from integration of Migrating-in and Migrating-out modules is shown at Figure 4-27.

Key variables of the model integrating the Migrating-in and Migrating-out modules are the same as those defined in Tables 4-5 and 4-6 respectively, except that as a result of integrating these modules POPULATION is now defined as shown in Table 4-9.

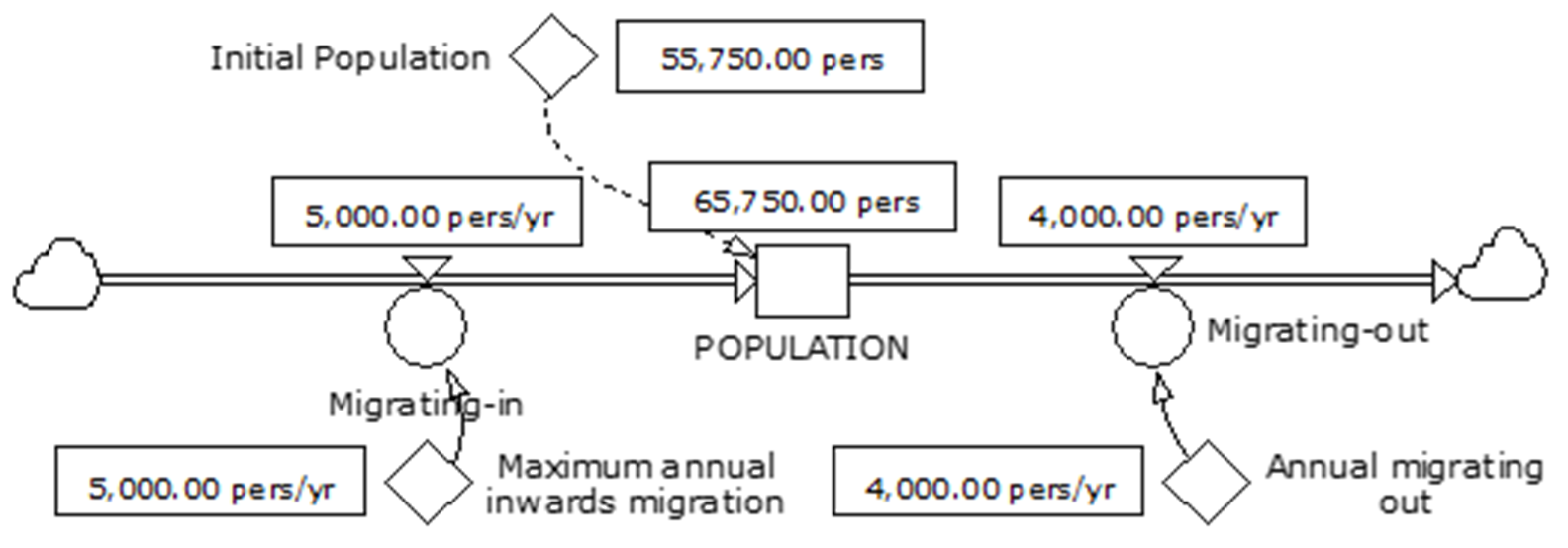

Figure 4-27. Model Integrating *Migrating-in* and *Migrating-out* Modules Simulated Over 10 Years

Table 4-9. POPULATION Defined in Model Integrating Birthing and Dying Modules

Variable	Definition	Comment
POPULATION	Initial Population	Population Flow = +dt * (Migrating-in)–dt * (Migrating-out). This flow definition is generated automatically by Powersim™ Studio as a result of the flow connections made to the stock POPULATION (and in the sequence in which those connections are made).

Variable

Definition

Comment

POPULATION

Initial Population

Population Flow =

+dt * (Migrating-in)–dt * (Migrating-out).

This flow definition is generated automatically by Powersim™ Studio as a result of the flow connections made to the stock POPULATION (and in the sequence in which those connections are made).
